SDS Motorcycle interface is universal motorcycle diagnostic Scan tool for suzuki, Suzuki SDS motorcycle interface will be used to diagnoses trouble by communicating with the onboard computer. SDS suzuki diagnostic system support Mode and System for Suzuki Motocycle.
- Jun 24, 2009 Not only do you need the SDS toolset (0) but you also need a copy of the SDS software (0-012) CDROM (version 12). The SDS toolset is available from some of our site sponsors, but best I can tell the CD is not for sale, and can only be obtained by authorized suzuki repair shops.
- Jan 27, 2017 This video shows you how to connect to your Suzuki or Johnson 4 stroke outboard and read data such as engine hours and diagnostic information. Have Suzuki SDS software installed 2.
- New version of SUZUKI SDS 8.3 is available for download, which supports up to 2018 models.
SDS (Suzuki Diagnostics System) is a KWP-2000 (sometimes known as K-Line or ISO-14230) protocol running at 10,400 baud/8n1. While the ISO spec covers the physical signaling and general protocol, the actual messages and their meaning. SUZUKI DIAGNOSTIC SYSTEM 7.0. SUZUKI DIAGNOSTIC SYSTEM. Choose the most popular programs from Productivity software. 3.9 (16 votes ) 8.5 ( See all) MITSUBISHI ELECTRIC CORPORATION. Review Comments Questions & Answers Update program info. Suzuki adapter for connecting to older models or outboard enignes.The Yamaha Diagnostics Software Program communicates with the Engine Control Unit (ECU) and the Engine Management Module (EMM) and is used for retrieving engine diagnostic information, setting engine operating parameters, performing engine maintenance and printing engine reports on Yamaha engines.
Apr 20, 2018 The second SDS vendor told me my engine was too new for the database version. My engine is indeed just a few months old. So I have no way to know if that is true. I took my boat to a suzuki service location for the 20 hour service and I asked for an SDS printout to confirm the hours for my records. 1 Suzuki Diagnosis System Operation Manual Specifications and Functions of the Suzuki Diagnosis System (1) The dedicated software of this diagnosis system runs on a standard personal computer (PC) under Windows 95, 98, Me, 2000, XP, Vista, and 7.
Motorcycle Diagnostic Scan Tools SDS for Suzuki
1. Languages: French,English,German,Italian,Spanish,Greek,Portuguese,Japanese,Chinese
2. Operating System: Windows XP, Vista and 7
3. Support Year: 2000-2012
Notice: SDS Cannot Be Updated
Specifications and Functions
(1) This system diagnoses trouble by communicating with the onboard computer using specially designed software that operates on commercially available Windows 95, 98, 2000, XP, Vista and 7, the special interface box that translates/converts the computer communication signals, and the special communication cable.
(2) Taking application in motorcycles into consideration, the interface box has been made compact and light in weight. In addition to providing a connector to the vehicle, the system is equipped with two types of connector, USB and RS-232C, for communication with the computer so as to be compatible with both new and old computers.
(3) The interface box is not waterproof because standardized connectors are used. The operabletemperature range is 0 – 50 °C. The maximum vibration resistance is 2.2G, which requires protection from impact and vibration.
(4) For communication protocol between the computer and adaptor, the international standard ISO14230 is used.
(5) This special software is compatible with nine languages
(6) Whether the engine is operating or at halt, the data received from various sensors can be displayed in real time or can be plotted. The data or graphs displayed can be saved and printed.
(7) The type of data to be displayed can be selected.
(8) The saved data can be re-displayed and plotted in the graph.
(9) The failure code (both past and current) that has been memorized at the time of failure can be called back and displayed. The change of data record at the time of failure (2 cases maximum) can also be displayed.
(10) A'trigger' can be set up for the diagnostic data. The trigger is a function that starts recording the data from where the set value is exceeded (or comes short) for one or more data. This function can also record the timing to display the trouble code in the monitoring graph.
(11) Active control is possible (such as secondary air solenoid drive, etc.).
(12) The system can record the data of about 30 minutes of operation as well as driving data. They can be read out and verified.
(13) The system requires setting up an additional function to the onboard ECU and use of a special connector. The diagnosis system is applicable to the new models produced in and after May 2002 (AN 650 onward) and their model changes. This system is not applicable to those models that were produced earlier than the above.
SDS Suzuki supported Motorcycle list:
Sds Suzuki Diagnostic System Download Software
Suzuki Sds Software Download
Suzuki Diagnostic System Download
Sds Suzuki Diagnostic System Download Windows 10
Data Monitor: Shows the present vehicle condition using a numerical or graph display.
Executes 'Data monitor'.
DTC inspection : Shows diagnostic trouble codes saved in ECU.
Executes 'DTC inspection'.
Show failure data : Shows the vehicle condition before and after failure using a numerical display.
Executes 'Show failure data'.
Active control: Controls the vehicle temporarily from the computer.
Enables confirmation of the system.
Executes the 'Active control menu'.

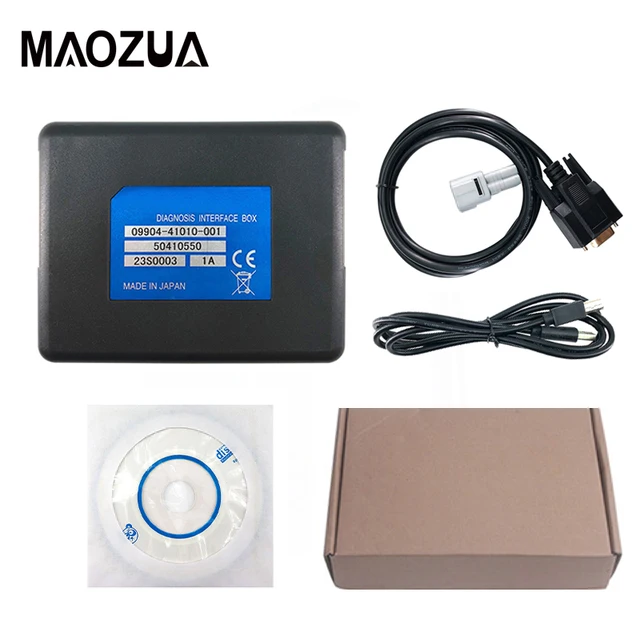

SDS Interface Package
1pc x SDS Interface box
1pc x K-line cable
1pc x USB Cable
1pc x CD
